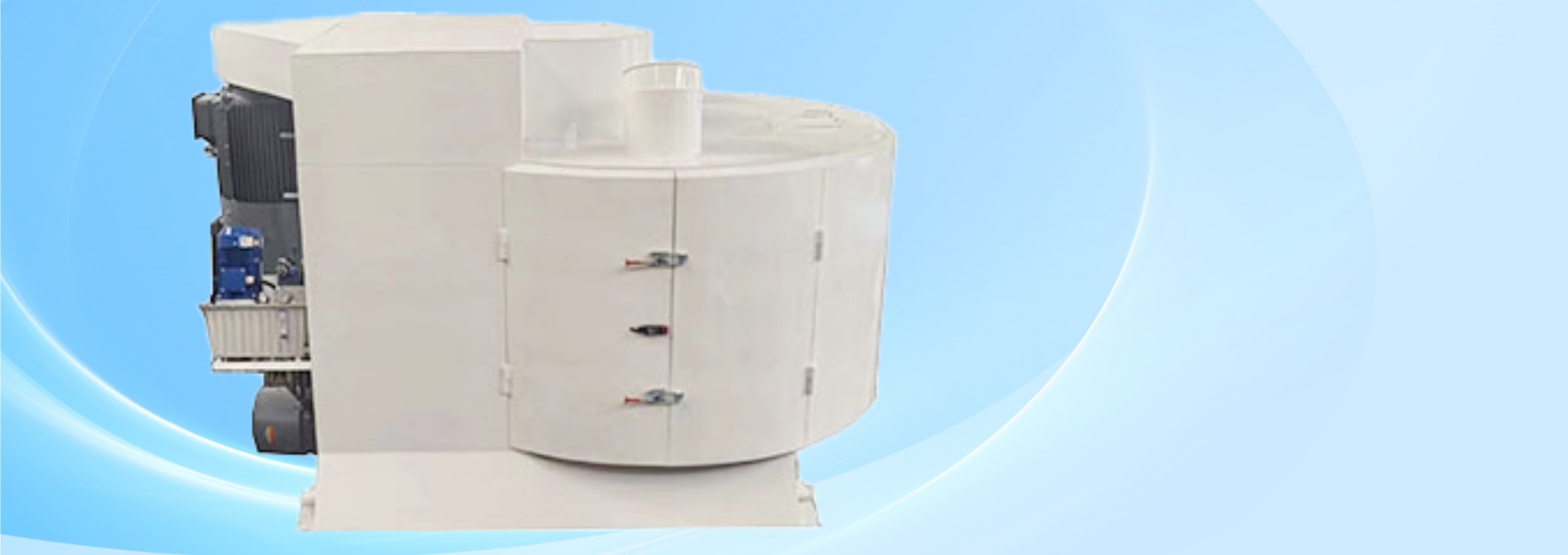

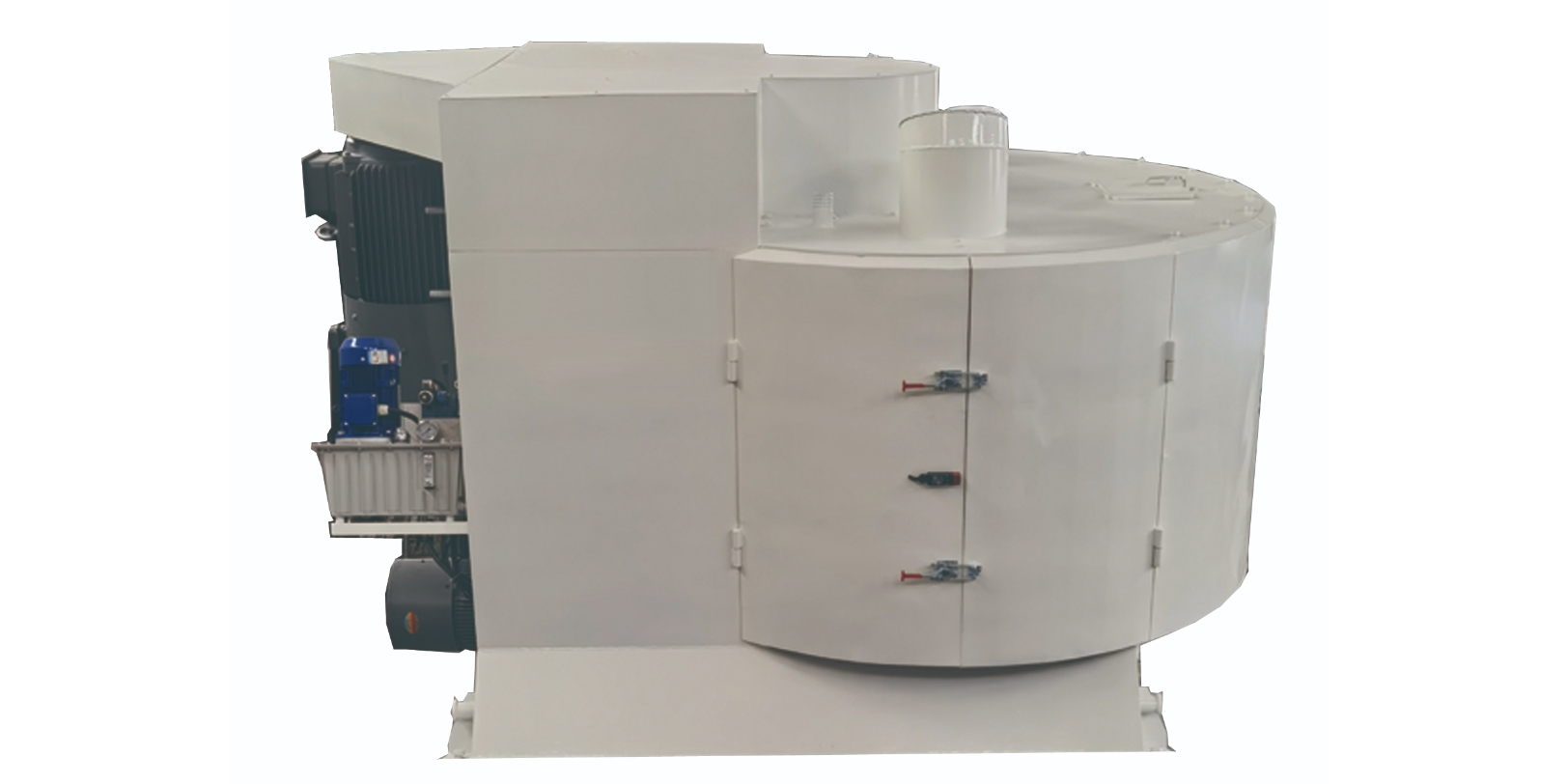

Inclined mixing granulator

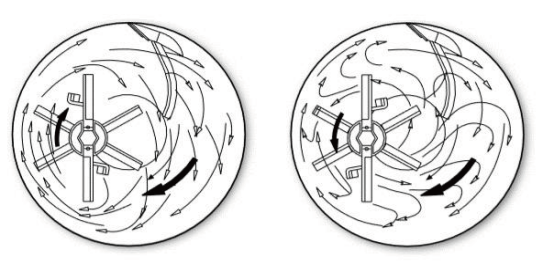

Efficient Mixing & Granulation: The inclined design enhances mixing and granulation efficiency, producing uniform granules.

Space-Saving Structure: Its inclined configuration optimizes space utilization, making it suitable for compact production lines.

Easy Cleaning & Maintenance: The inclined bowl allows for better access, simplifying cleaning and maintenance tasks.

Versatile Application: Suitable for a wide range of materials, the inclined mixing granulator offers flexibility in production processes.

…

Model	Mixing Capacity		Discharging Type
Model	Volume/L	Weight/KG	Discharging Type
GT15	1.5	1.5	Electric Lift, Manual Discharging
GT25	5	5	Electric Lift, Manual Discharging
GT35	10	10	Pan Inclines to Discharge
GT55	50	50	Pan Inclines to Discharge
GT90	150	150	Pan Inclines to Discharge
GT110	250	250	Hydraulic Central Discharge
GT130	350	350	Hydraulic Central Discharge
GT160V	500	500	Hydraulic Central Discharge
GT160	800	800	Hydraulic Central Discharge
GT190V	1000	1000	Hydraulic Central Discharge
GT190	1500	1500	Hydraulic Central Discharge
GT220	2000	2000	Hydraulic Central Discharge
GT240	3000	3000	Hydraulic Central Discharge

Performance data for other mixes are available upon request. All data above are based on standard specifications. The technical data of customized specifications may be different from the above data. All technical data is subject to change due to further development of the product. We reserve the right to change at any time.
